NAVITEL SMART BOX MAX

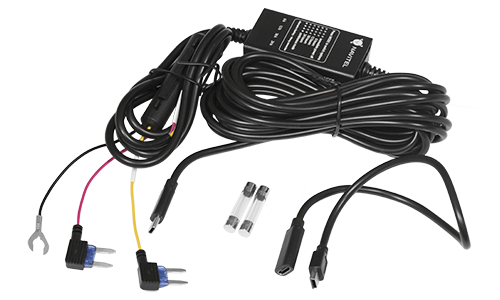

Power controller with USB-C and USB-C to mini-USB adapter

NAVITEL SMART BOX MAX-1
Why do you need a NAVITEL SMART BOX MAX?

With NAVITEL SMART BOX MAX you can power a dashboard camera or any other device even when the car is parked and the ignition is off.

NAVITEL SMART BOX MAX protects your vehicle battery from discharge based on the voltage or preset time. The power controller will automatically turn off the power of the DVR when car battery voltage drops below a determined value or the configured timer elapses (whichever occurs first). Also, NAVITEL SMART BOX MAX guards your DVR against power surges.
Important: The NAVITEL SMART BOX MAX power controller can have different type of plug and power connector modifications. Before buying, make sure that the controller is compatible with your device.

NAVITEL SMART BOX MAX-2
NAVITEL SMART BOX MAX-3
Protection from discharge
NAVITEL SMART BOX MAX-4
Power voltage control
NAVITEL SMART BOX MAX-5

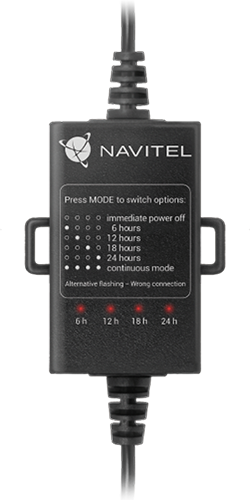

6 shutdown timer modes
NAVITEL SMART BOX MAX-6
Security against power surges
NAVITEL SMART BOX MAX-7
Compatibility with 12/24 V
NAVITEL SMART BOX MAX-8
Concealed installation

Tech specs

General
Input voltage
12-40 V
Output voltage
5 V
Output current
2 A
Size
60×55×18 mm
Weight
125 g
Cable length
4.5 m
Connector
USB-C, mini-USB via adapter
Fuse
2 A
EAN
8594181745161

Documentation

Important: The NAVITEL SMART BOX MAX power controller can have different type of plug and power connector modifications. Before buying, make sure that the controller is compatible with your device.

Note: the package, appearance, specifications that do not change the overall functionality of the device may be changed by the manufacturer without prior notice.
