NAVITEL RD5

NAVITEL RD5-1
NAVITEL RD5-2

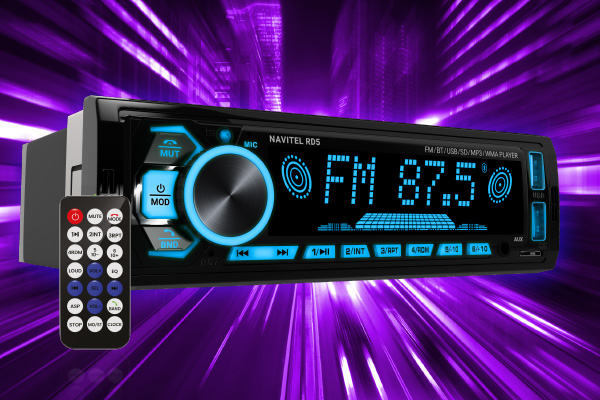

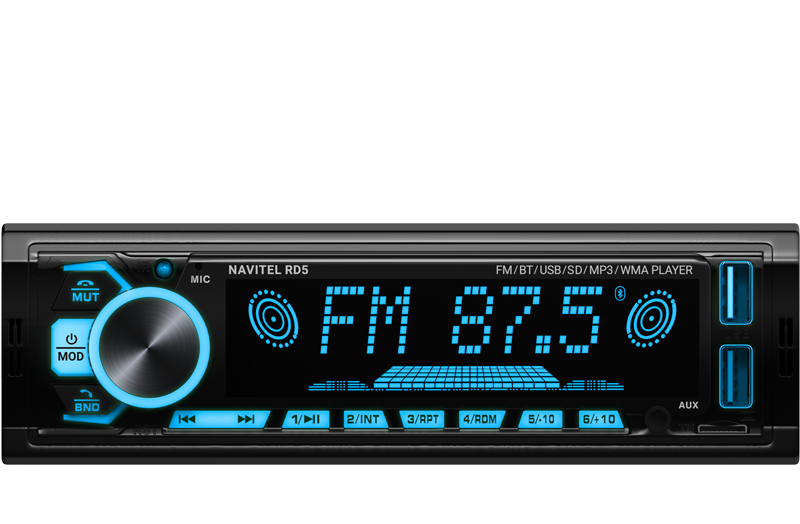

NAVITEL RD5 is a multifunctional car radio with a standard installation size of 1DIN. The radio tape recorder is equipped with a digital FM module with a FM reception range of 87.5-108 MHz, 18 stations are stored in the memory, which are easy to switch using the buttons on the front panel. The device provides bass and treble tone controls, as well as several preset equalizer settings. Thanks to the RCA outputs, you can connect an external amplifier to the device and implement a car audio system with many components.

NAVITEL RD5-3
NAVITEL RD5-4

The NAVITEL RD5 radio is equipped with a modern Bluetooth module supporting A2DP, HFP (ver. 4.0) protocols, which provides high-quality playback of streaming audio from smartphones, access to contacts and call list. Making calls while driving will become much easier.

NAVITEL RD5-6
NAVITEL RD5-7

NAVITEL RD3 plays the most popular media file formats: FLAC, MP3, WMA, WAV. The front panel of the device has an AUX input, a slot for a microSD memory card up to 256 GB and two USB ports, one of which can be used to connect a flash drive up to 256 GB, and the second serves to charge a smartphone and supports a charge current of up to 2.1A.

NAVITEL RD5-8
NAVITEL RD5-9

The backlight of the radio control buttons has 7 preset options. You can customize it to match your car's interior or your mood.

NAVITEL RD5-10
NAVITEL RD5-11

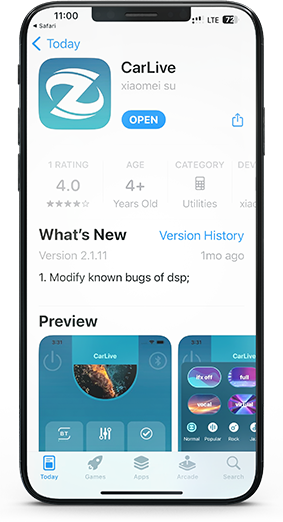

The NAVITEL RD5 car radio can be controlled with maximum comfort using the free CarLive mobile application available for Android and iOS. The CarLive application will turn your smartphone into a convenient tool for controlling the main functions of the car radio.

Contents

NAVITEL RD5 car radio
Connecting cables (2 pcs)
Install tool (2 pcs)
Remote control
Warranty card
User manual

NAVITEL RD5:

Power
USB output current
2,1 A
Source voltage
9-16 V
Display
Display
yes
Display type
VA LCD
RGB backlight
7 colors
Dimensions
Unit size
1DIN
Sound
Audio formats
MP3, WMA, WAV, FLAC
Bluetooth
yes
FM radio
FM
FM frequencies
87,5 - 108,0 MHz
Hands-free
yes
Hands-free profiles
A2DP, AVRCP, HSP, HFP
Microphone
yes
Equalizer
yes
Audio channels disbalance
≤ 2 dB
Channel separation
≥ 56 dB
Frequency response
20-20000 Hz
Output power
4х50 watt
Audio inputs/outputs
USB, MicroSD
AUX
yes
RCA
yes
Mini-jack audio on the front panel
yes
Number of supported radio station
18
Specifications
USB
2 x USB-A
USB Flash max volume
up to 256 GB
The ability to charge a connected mobile device
yes
Slot microSD
up to 256 GB
Program Search
automatic
Remote control
yes
EAN
8594181745062
Warranty
Warranty period
24 months

Documentation

Note: the package, appearance, specifications that do not change the overall functionality of the device may be changed by the manufacturer without prior notice.
