NAVITEL R1050

NAVITEL R1050-1
NAVITEL R1050-2
Your reliable assistant on the road

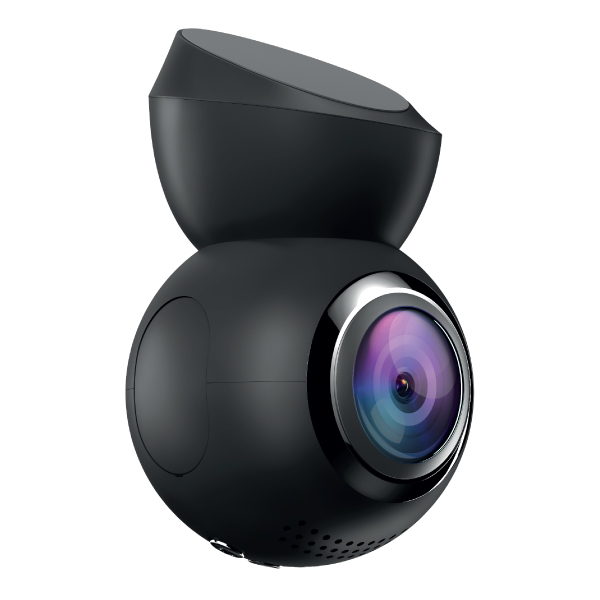

NAVITEL R1050 is a multifunctional car device that combines the functions of a DVR, digital speedometer and GPS informer.

NAVITEL R1050-3
Wide viewing angle

NAVITEL R1050 is equipped with a modern SONY IMX323 matrix, glass optics and a wide viewing angle of 165°, providing the highest quality recording of everything that happens on the road.

NAVITEL R1050-4
NAVITEL R1050-5
NAVITEL R1050-6
Record protection

The DVR has a built-in shock sensor (G-sensor), which protects against overwriting video made during a collision or sharp maneuver.

NAVITEL R1050-7
Travel safety

Thanks to the built-in GPS antenna and an updated database, the driver receives up-to-date information about control cameras, potentially dangerous places, and after-sales services. The intelligent system provides graphic and sound alerts, which are activated 450 meters from the location of the camera or road restrictions.

NAVITEL R1050-8
NAVITEL R1050-9
NAVITEL R1050-10
Mobile app

Using the Navitel DVR Center application, you can view photos and videos from the DVR in real-time, change device settings and format the SD card. Also, the user can easily save files to his smartphone or tablet, share them on social networks or send by mail.

NAVITEL R1050-11
NAVITEL R1050-12
NAVITEL R1050-13
Maps as a gift

All users receive a gift voucher with a 12-month license key that allows to install Navitel Navigator application with maps of more than 45 countries. The license can be used on a smartphone or tablet with Android OS and is valid for 365 days from the date of activation.

Contents

DVR
Windscreen holder
Car charger
miniUSB cable
Microfiber cloth
User manual
Warranty card
Gift voucher


*All users receive a gift voucher with a 12-month licence key that allows to install Navitel Navigator application with maps of 43 European countries, Russia, Belarus, Kazakhstan and Ukraine. The license key can be activated on one smartphone or tablet running Android OS.

NAVITEL R1050:

Camera
Camera sensor
SONY IMX323
Video resolution max
Full HD 1920х1080
FPS
30
Viewing angle
165°
Lens material
4-layer glass
Video format
MOV
Image format
JPG
Video fragments length
1/3/5 min
Loop recording
yes
Overwrite protection
yes
Rear camera
Rear camera connectivity
no
Display
Screen size
1.22"
Screen type
IPS
Screen resolution
240x204
Touch screen
no
Features
Auto-Start
yes
GPS-alerts
yes
Digital speedometer
yes
G-sensor
yes
Motion detection
yes
Parking mode
yes
Sound recording
yes
Wi-Fi support
yes
GPS antenna
yes
Mass Storage
yes
Manage via Navitel DVR Center
yes
Wi-Fi
Wi-Fi Operating frequency
2.4GHz band
Wi-Fi Output Power 802.11b /11Mbps
10db
Wi-Fi Output Power 802.11g /54Mbps
27db
Wi-Fi Output Power 802.11n /MCS7
30db
Wi-Fi Output Power 802.11n HT40
30db
Power
Power supply (12-24V 1.5A)
5V 1.5A
Battery
Li-Pol
Battery capacity
180 mAh 3.7 V
General
CPU
MSTAR 8328
Interfaces
mini-USB
microSD slot
up to 64 GB
Number of cameras
1
Mount
3M adhesive, magnet, power supplied directly to holder
Speaker
yes
Microphone
yes
Color
black
Dimensions
50х50х87 mm
Weight
98 g
Gift voucher
maps of 45+ countries (12 month license for Android)
EAN
8594181741606
Warranty
Warranty period
24 months

Documentation

Note: the package, appearance, specifications that do not change the overall functionality of the device may be changed by the manufacturer without prior notice.
