NAVITEL R33

NAVITEL R33 01
NAVITEL R33 02

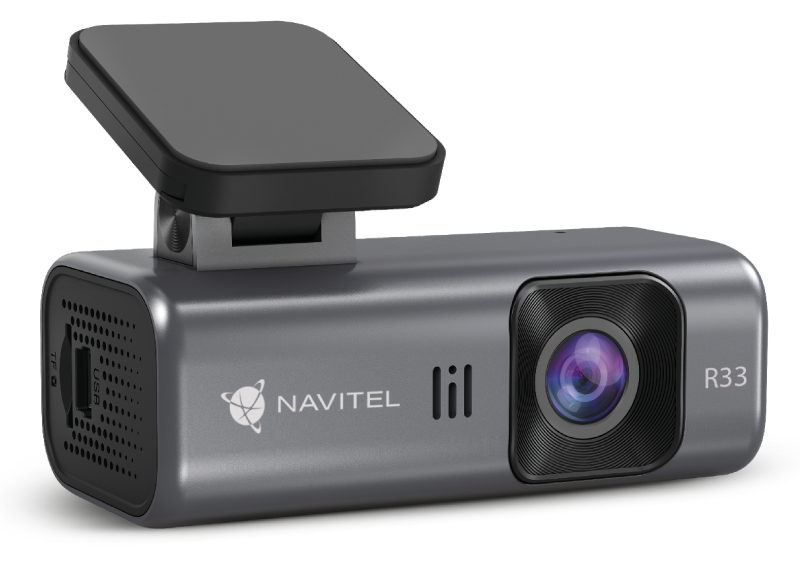

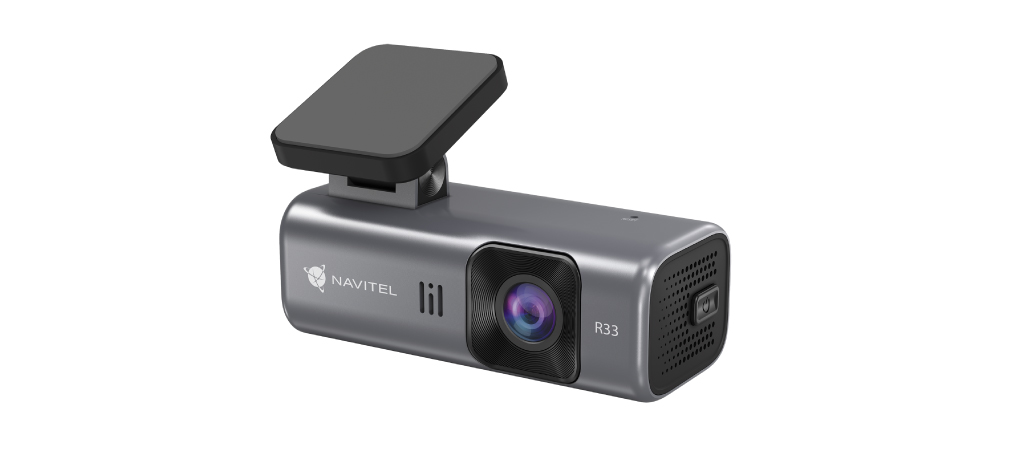

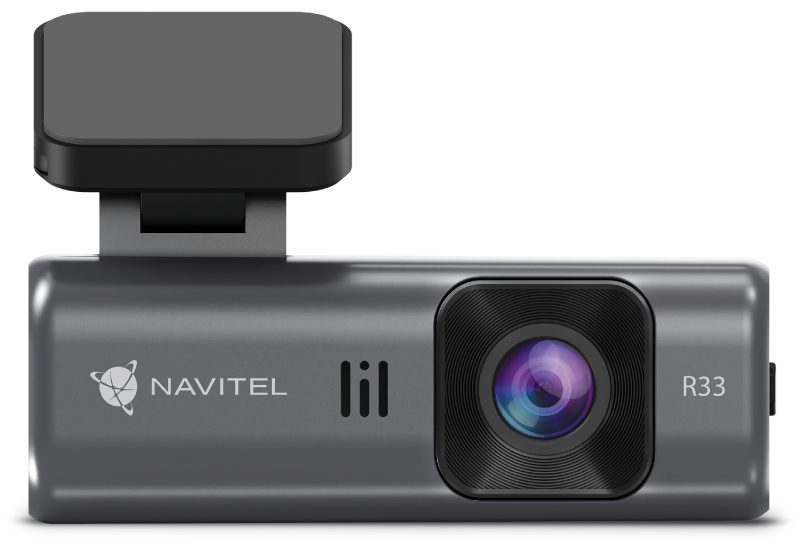

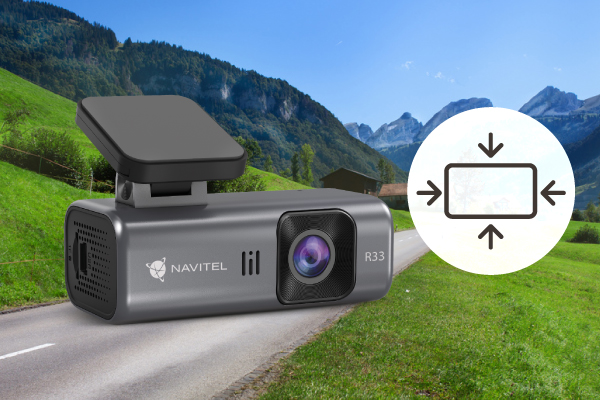

Stylish and compact

The NAVITEL R33 is a modern and stylish dashcam. The small dashcam with the “tube-shaped” form factor will be discreet in any vehicle. The microbattery installed in the device allows to correctly save the settings of the dashcam, date and time, Wi-Fi password, as well as the last file when the power is turned off. All you need to do is to enjoy and worry about nothing.

NAVITEL R33 03
NAVITEL R33 04

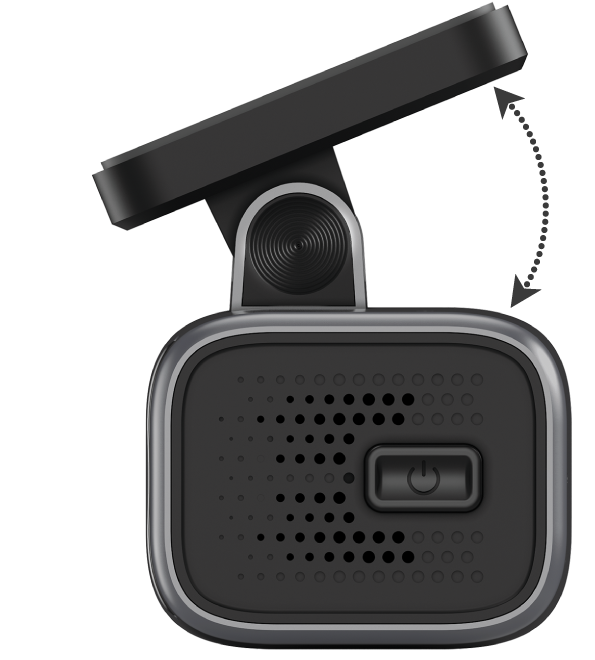

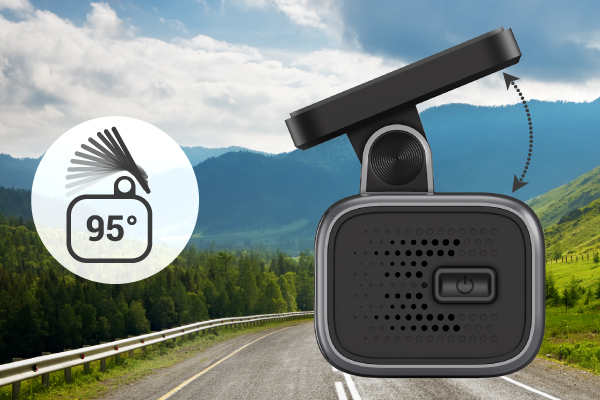

Camera tilt by 95°

The camera body supports 95° rotation. You can set the desired camera angle when attached to the windshield. The DVR easily detaches from the mount and you can remove it effortlessly.

NAVITEL R33 05
NAVITEL R33 06
Full HD Resolution

NAVITEL R33 dashcam captures 1920x1080 P footage, delivers stunning image quality day and night, provide clear video evidence to make your life easier and safer.

NAVITEL R33 07
NAVITEL R33 08
Navitel DVR Center mobile app

With the built-in Wi-Fi module and the Navitel DVR Center* application, control of the DVR will literally be in your hands. From your smartphone or tablet, you can update the software, view video from the recorder in real-time, change device settings, save files to your smartphone or tablet, and also share them on social networks or send them by mail.
* To connect to the dashcam, use the password 12345678 or 1234567890.

NAVITEL R33 09
Loop Recording

The loop recording will record video in 1/2/3/5/10-minute clip, and automatically overwrite the oldest UNLOCKED file when your micro SD card is full. Free your hands from manually canceling unnecessary videos.

NAVITEL R33 10
G-sensor Emergency Lock

With the built-in G-sensor, the dash cam quickly captures an emergency situation and automatically locks the footage, preventing it from being overwritten, which ensuring important footage is kept secure.

NAVITEL DVR PLAYER
Navitel DVR Player

To view and edit videofiles from the dashcam on Windows computers, use Navitel DVR Player program.

NAVITEL R33 11
Map licenses for free

All users of NAVITEL R33 receive a gift voucher for the Navitel Navigator application. The annual map subscription includes licenses for European countries.

Contents

DVR NAVITEL R33
Windscreen holder
Car charger 12/24 V
Card Reader
Microfiber cloth
User manual
Warranty card
Gift voucher

NAVITEL R33:

Camera
Camera sensor
GC2053 (night vision)
Video resolution
Full HD 1920х1080
Viewing angle
124°
Lens material
6-layer glass
Video format
TS
Video fragments length
1/2/3/5/10 min
Loop recording
yes
Overwrite protection
yes
Rear camera
Rear camera connectivity
no
Display
Display
no
Features
Auto-Start
yes
G-sensor
yes
Parking mode
yes
Sound recording
yes
Wi-Fi support
yes
Manage via Navitel DVR Center
yes
Wi-Fi
Wi-Fi Operating frequency
2.412~2.484 GHz
Wi-Fi Output Power 802.11b /11Mbps
17dBM
Wi-Fi Output Power 802.11g /54Mbps
15dBM
Wi-Fi Output Power 802.11n HT20
14dBM
Wi-Fi Output Power 802.11n HT40
13dBM
Power
Power supply (12-24V 1.5A)
5V 2A/5V 2.5A
Battery
microbattery
Car charger wire length
354 cm
General
CPU
MSTAR SSC333
Interfaces
mini-USB for devices released before
USB-C for devices released after
microSD slot
up to 128 GB
Number of cameras
1
Mount
3M adhesive
Speaker
yes
Microphone
yes
Gift voucher
maps of 45+ countries (12 month license)
EAN
8594181744270
Warranty
Warranty period
24 months

Documentation

Note: the package, appearance, specifications that do not change the overall functionality of the device may be changed by the manufacturer without prior notice.
